12v5a desktop adapter with UL SAA CE FCC approval

Product Categories

Shenzhen Simsukian Electronics Technology Co.,Ltd

Contact Now

Name: 12v5a desktop adapter with UL SAA CE FCC approval
Brand: simsukian
Price: 1 USD

Place of Origin : China

Brand Name : simsukian

Model Number : SK08G

Certification : CE UL FCC SAA C-Tick CCC KC ROHS MEPS PSE GS BS

Price : $7

Packaging Details : PE bag /Small white box + Cartons, 90pcs/Carton, G.W. is 13.7Kg, Dimension is 510X290X250mm

Delivery Time : 15-20 days after receiving the confirm order

Payment Terms : T/T,L/C,paypal

Supply Ability : 500000 per month

MOQ : 500 pieces

Contact Now

12v5a desktop adapter with UL SAA CE FCC approval

specification

SK08G Series Desk Adapter(75W)
Product Features:
1). Ultra-small size, light weight, streamline, fully sealed and easy to carry;
2). Competitive price design, high reliability, ultrasonic lamination;
3). Built-in over voltage, over current and short circuit protection;
4). Input Characteristics: Voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 1.5A Max;
Starting Time: 3s Max; Inrush Current: 60A/240VAC Max;
5). Output characteristics: constant voltage mode, high precision, low noise;Hold up time: 20mS Min;
6). Environmental: Operating temperature: 0 °C -40 °C, 5% -90% RH;
Storage temperature: -20 °C -85 °C, 5% -95% RH;
7). Cooling mode: natural cooling;
8). Energy efficiency accordingly: ERP / CEC-V standard;
9). Safety standards: IEC/EN/UL60950;
10).Meet ROHS standards;
11).Input Block type:IEC-C6/IEC-8/IEC-14;
12).Average failure rate: 50,000 hours;
13).Electrical characteristics: (see below sheet)
Model	I/P Condition	Output(V)	Output(A)	Output(W)max
SK08G-XXXXYYY		5.0-8.9V	0.10-7.80A	60W
SK08G-XXXXYYY	100-	9.0-11.9V	0.10-7.00A	68W
SK08G-XXXXYYY	240VAC	12.0-18.9V	0.10-6.25A	75W
SK08G-XXXXYYY	1.5A Max	19.0-24.9V	0.10-3.95A	75W
SK08G-XXXXYYY	50/60Hz	25.0-36.9V	0.10-3.00A	75W
SK08G-XXXXYYY		37.0-48.0V	0.10-2.03A	75W

products

12v5a desktop adapter with UL SAA CE FCC approval

>Certificate:

12v5a desktop adapter with UL SAA CE FCC approval

>Shipping:

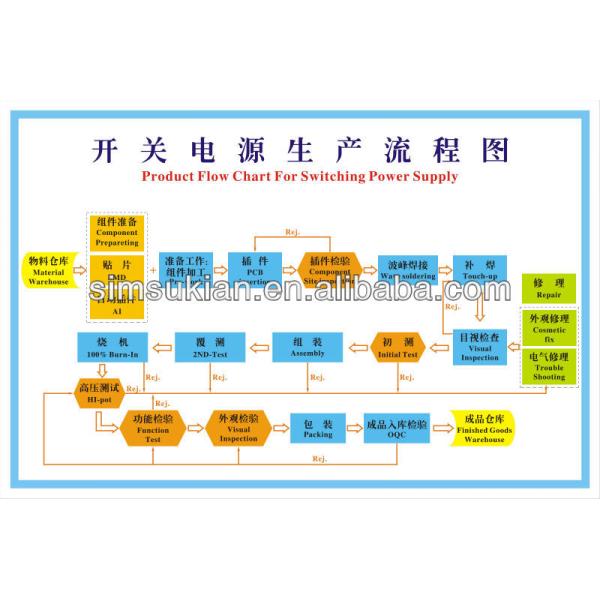

>Work flow:

> Workshop and office:

12v5a desktop adapter with UL SAA CE FCC approval
